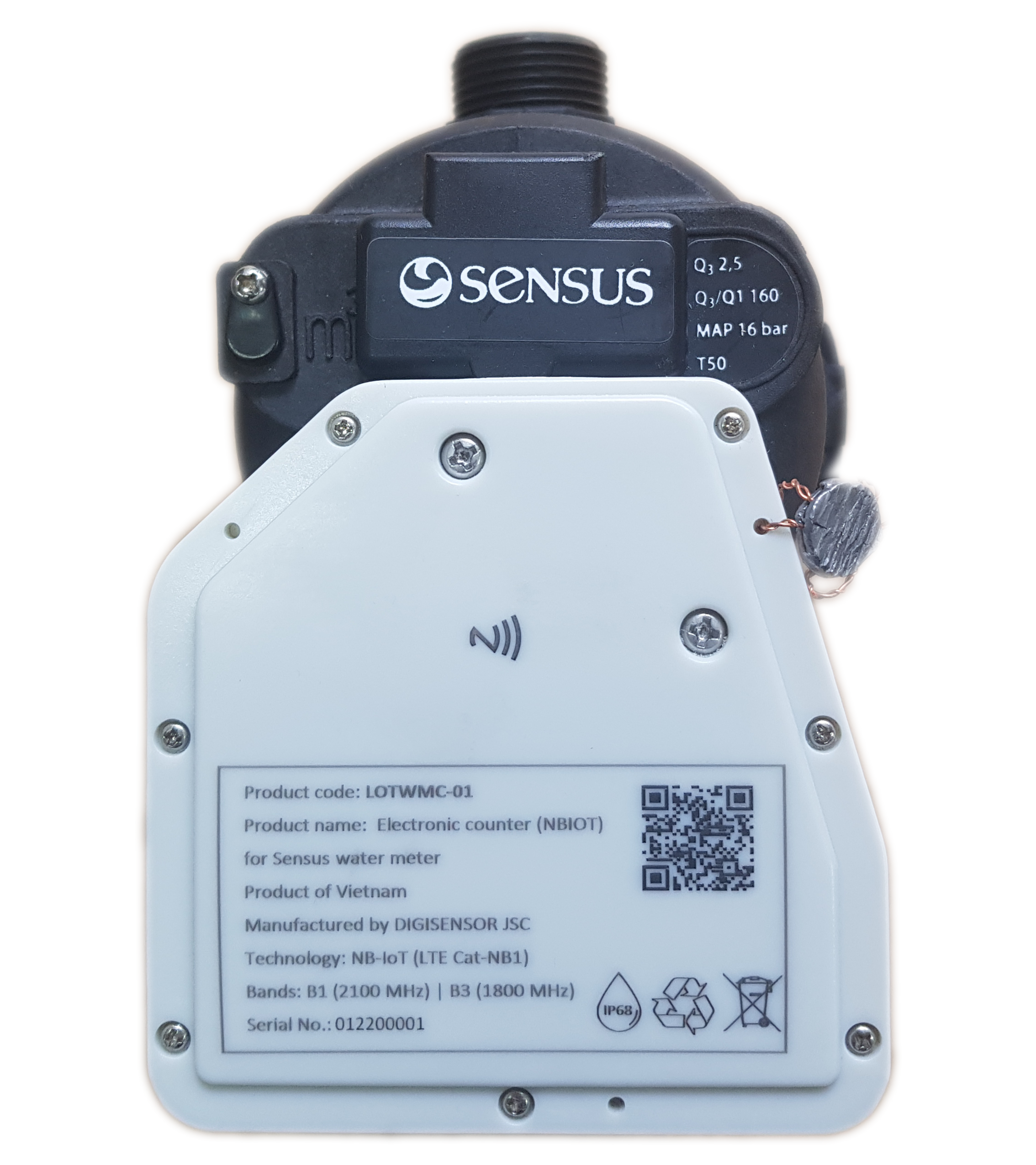

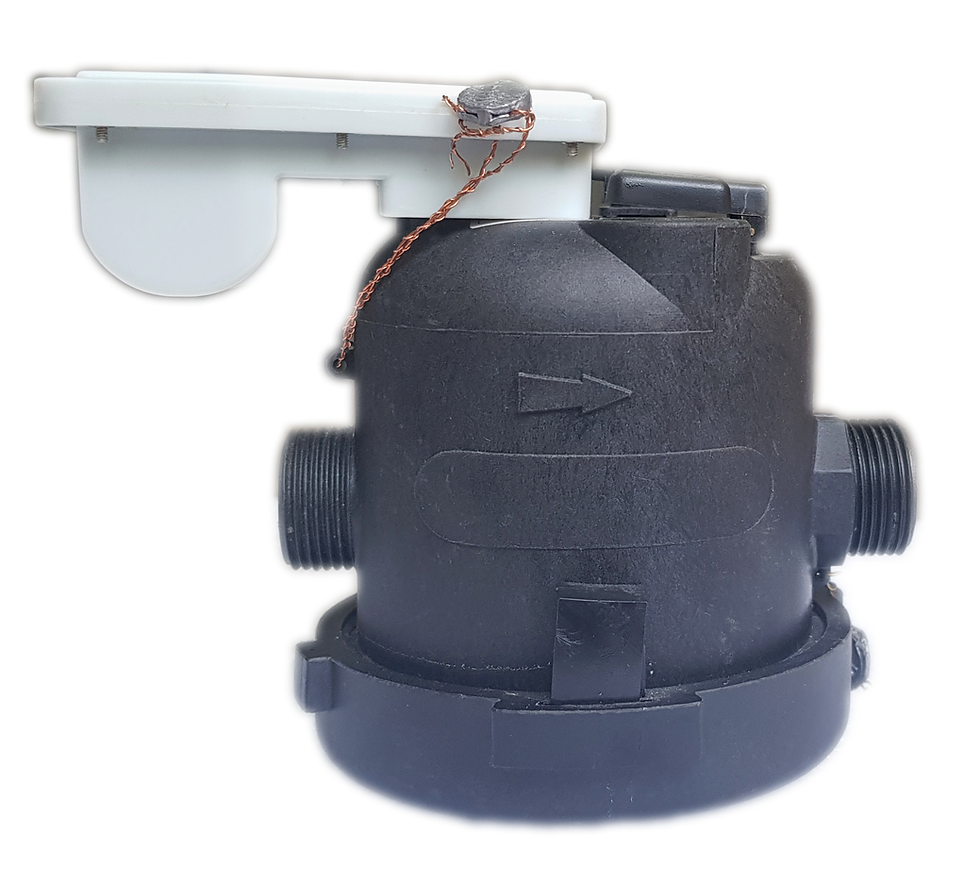

Electronic Counter with Magnetic Resistance sensor (Lora/NBIOT) for Sensus Water

Electronic Counter with Magnetic Resistance sensor (Lora/NBIOT) for Sensus Water

  • Accuracy: ± 0.5%
  • Communications: NFC & LoraWAN/NBIOT
  • 5 years battery
  • Warnings monitoring: low battery, leakage, overflow, reverse flow, magnetic tampering, counter removal.
  • Register range: 0.001 to 9999.999 [m3]
  • Temperature range: 0 to 60°C
  • Ingress Rating: IP68
  • Technical specifications

    - Water volume:

    • From 0 to 9999.999 m3.
    • Accuracy +/- 0.5 liter.
    • Resolution : 1 liter.
    • Data sampling : 1s.

    - Temperature range : 0oC to 60oC.

    - Warnings :

    • Low battery.
    • Water leakage.
    • Oveflow.
    • Reverser.
    • Tampering.

    - Battery LiSOCL2 3.6V 2.4Ah, AA size. Life time 5 years.

    - IP 68.

    - Warranty for 1 year.

    Documents

    1.
    2.
  • Communications

    - NFC interface according to ISO 15693 RF – 13.56 MHz.

    - Equivalent interface options: LoRaWan, NB-IoT.
